<< | < | ATL-HDR-15 - 230Vac to 24Vdc Power Supply (15W)
|
| |
|

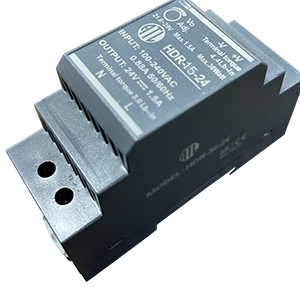

The ATL-HDR-15-24 Power Supply is a cost effective, ultra slim unit providing a regulated 24Vdc output from an 85 to 264Vac input. The power supply is designed to provide 24Vdc to power DIN Rail Modules, but has many other uses where a cost effective DC supply is required. The ATL-HDR-15-24 features short circuit, over load & over voltage protection and is designed for mounting on TS35 section DIN rail. |
Product Features
| • Regulated 24Vdc Output at 0.63A
• 85 to 264Vac or 120 to 370Vdc input
• Short Circuit, Over Load, Over Voltage
| • High Quality Rising Clamp Terminals
• LED Power Indication
• DIN Rail Mounting (TS35)
|
Input Voltage
| (85 to 264Vac) or (120 to 370Vdc)
| Input Frequency Range
| 47 to 63Hz
| Input Current
| 0.25A / 230Vac
| Input Inrush Current (max.)
| COLD START 25A/115Vac 45A/230Vac
| Output Voltage
| 24V @ 0.63A
| Output Voltage Adjustment Range
| 24Vdc
| Output Current
| 24Vdc
| Output Power
| 24Vdc
| Terminals
| Rising Clamp for 0.5-2.5mm² Cable
| LED Indication
| ON when power on
| Ambient Temperature Range
| -30 to +70°C @ 20 to 90% RH
| Safety Standards
| UL508, TUV EN60950-1 Approved
| EMC Conduction and Radiation
| Compliance to EN55032, EN61000-3-2, -3
| Weights & Dimensions
| 17.5mm(W) x 90mm(H) x 54.5mm(D), 74grams
| Country of origin
| Taiwan
|
|
|
| ATL-HDR-15.pdf / Universal 230Vac Input to 24Vdc Power Supply (15W) |  |
|
|
|
