<< | < | AX-AA - Alarm Annunciator - 1,2,3 and 4 channel
|
| |
|

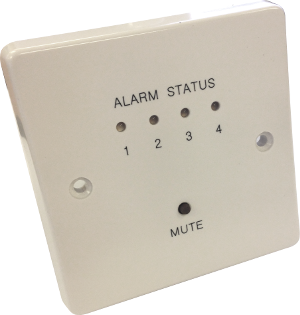

The Axio AX-AA is a range of 1, 2, 3 and 4 channel alarm annunciators containing a built in sounder, mute switch and alarm relay. The units provide local audible and visual alarm indications and an alarm relay for remote indication. To reduce unwanted alarms the unit has an adjustable input time delay. Once an input has alarmed the condition is latched until the mute switch is pressed to accept the current alarms. The units are mounted on a single gang front plate for easy installation. |
Product Features
| • Audible alarm
• Alarm output relay
• 24Vac/dc powered
| • Red / green LED indication for each input
• Adjustable input delay
• Sounder mute button
|
Supply voltage
| 24Vac/dc 50/60Hz (+/-15%)
| Supply current
| 130mA ac / 70mA dc (Maximum)
| Housing
| Single gang white pattress (UK). (Minimum back box depth 22 mm)
| Input
| 12 to 24 Vac/dc or volt free contacts
| Input delay preset
| 0 to 30 seconds
| Output
| SPCO relay rated 5A at 50Vac maximum (Resistive)
| LED indication
| Green
|
| Flashing red
|
| Solid red
| Audible alarm output
| 80dB at 20 cm
| Terminals
| Rising clamp for 0.5-2.5mm2 cable
| Ambient temperature range
| 0°C to 50°C
| Dimensions
| 85(W) x 85(H) x 32(D) mm (Maximum, including front plate)
| Weight
| 90gms
| Country of origin
| United Kingdom
|
