<< | < | AX-ABC - Analogue Buffer Conversion Module
|
| |
|

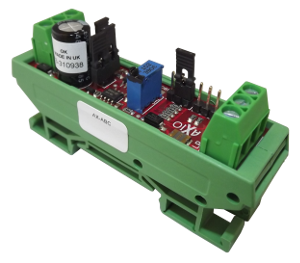

The Axio AX-ABC converts and buffers an analogue input signal (current or voltage selectable) to an analogue voltage signal output. The module is powered by 24Vac or 24Vdc, and provides a resettable, fused output for current loop applications. The AX-ABC is supplied in a DIN rail carrier for mounting on TS35 section DIN rail, and features high quality rising clamp terminals for ease of connection. |
Product Features
| • Voltage or current signal inputs
• Resettable fused output for current loop power
• Voltage signal output
| • DIN rail carrier as standard (TS35 DIN rail)
• 24Vac/dc powered
• High quality rising clamp terminals
|
Input Signal
| Voltage 0-5V, 0-10V, 2-10V, 5-10V (47 kΩ load impedance)
|
| Current 0-20mA, 4-20mA, 0-10mA or 10-20mA (500Ω load impedance)
| Output Signal
| AX-ABC - 0-5V, 0-10V, 2-10V at 10mA max. load (see datasheet)
|
| AX-ABC-Dual - 2 x Output signals as above
| Loop Power Output
| 24Vac supply 36Vdc nominal, fused at 200mA
|
| 24Vdc supply 23.5Vdc nominal, fused at 200mA
| Terminals
| Rising clamp for 0.5-2.5mm2 cable
| Ambient temperature range
| 0°C to 50°C
| Dimensions & Weight
| AX-ABC - 22(W) x 82(H) x 43(D) mm 30 gms
|
| AX-ABC-Dual - 45(W) x 82(H) x 43(D) mm 50 gms
| Country of origin
| United Kingdom
|
| AX-ABC.pdf / AX-ABC Analogue Buffer Conversion Module |  |
|
|
|
