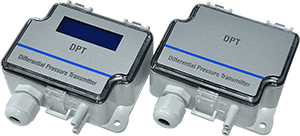

<< | < | AX-ADPT-8 - Multi Multi Range Air Differential Pressure Transmitter (V/I, AutoZero)
|
| |
|
|
The AX-ADPT-8 series differential pressure transmitters are engineered for building automation in the HVAC/R industry. The most technologically advanced transmitters on the market, measuring static and differential pressure, with field selectable units, range and output, all in a single device. |
Product Features
| • Cost-effective solution
• Multiple ranges in a single unit
| • Proportional output 0-10V, 2-10V, 4-20mA
• Unidirectional or Bi-Directional selectable via jumper (see order codes)
|
Range
| AX-ADPT250-8 20Pa to 300Pa (10Pa Switching Differential)
|
| AX-ADPS-83 50Pa to 500Pa (20Pa Switching Differential)
|
| AX-ADPS-84 30Pa to 400Pa (15Pa Switching Differential)
| Maximum Pressure
| Proof
| Burst
| 30kPa
| Pressure Connection
| ABS pipe suitable for use with 5mm and 6.3mm PVC tube.
| Electrical Connection
| Screw terminals suitable for 0.2-1.5mm² cable
| Electrical Rating
| 24Vac/dc ±10%
| Cable Entry
| IP54 M16 Gland
| Material
| Body
| Lid
| Polycarbonate
| Duct Connectors
| ABS
| Tubing
| PVC
| Ambient Temp
| -20°C to 50°C
| Dimensions
| 90 x 95 x 36mm (max.)
| Weight
| 150g
| Country of Origin
| Finland
|
| AX-ADPT-8.pdf / Air Differential Pressure Switch |  |
|
|
|
