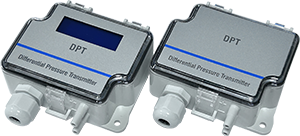

<< | < | AX-ADPT-MOD - Air Differential Pressure Transmitters - MODBUS
|
| |
|
|
The AX-ADPT-MOD is used for measuring air flow, velocity ,static and differential pressures of air and non-combustible gases in order to monitor and control building automation, HVAC and cleanroom systems. The measurements can be read and the configuration done via Modbus communication. AX-ADPT-MOD requires less wiring than the traditional 3-wire transmitters because multiple devices can be connected on serial line. |
Product Features
| • Cost-effective Solution
• Optional Auto Zero function
| • Multiple selectable measurement units
• Can be configured to transmit flow measurement
|
Power Supply
| 24Vac or 24Vdc, ±10% < 1.3Watts
| Output
| Modbus
| Sensor Type
| MEMS, No flow through
| Accuracy
| Model 2K5
| Model 7K0
| Pressure < 125Pa = 1.5% + ±2Pa, Pressure > 125Pa = 1.5% + ±1Pa
| Overpressure
| Proof
| Burst
| 30kPa
| Pressure Connection
| Ø5mm and Ø6.3mm ABS connectors
| Electrical Connection
| Screw terminals suitable for cables 0.2-1.5mm²
| Response Time
| 1.0−20 s, selectable via menu or via Modbus register
| Zero Point Calibration
| Automatic autozero, manual pushbutton or via Modbus register
| Compatible Media
| Dry air or non-aggressive gases
| Display
| 2-line display (12 characters/line )
| Line 1
| Volume or velocity measurement
| Line 2
| Pressure measurement
| Pressure Units (select via menu)
| Pa, kPa, mbar, inWC, mmWC
| Flow Units (select via menu)
| Volume
| Velocity
| m/s, ft/min
| Protection Standard
| IP54
| Operating Environment
| Temperature
| -40°C to 50°C ( Low temperature model)
|
| -5°C to 50°C ( Models with Auto Zero calibration)
|
| Humidity
| 0 to 95 % RH, non condensing
| Country of Origin
| Finland
|
| AX-ADPT-MOD.pdf / Air Differential Pressure Transmitters - MODBUS |  |
|
|
|
