<< | < | AX-ASM - Dual Channel Analogue Multiplexer
|
| |
|

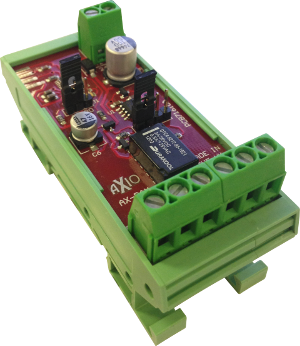

The AX-ASM analogue switch module switches low voltage AC or DC signals. The module has two changeover contacts that can be either switched onboard every 15 or 30 seconds (set by the TIME jumper) or remotely with a volt free contact. The unit is ideal for multiplexing low voltage input signals. To aid commissioning a jumper is provided to select either of the inputs. The AX-ASM is powered by 24Vac or 24Vdc and is supplied in a DIN rail carrier for mounting on TS35 section DIN rail. The unit has high quality rising clamp terminals for ease of connection. |
Product Features
| • Long life relay for small signal switching
• Automatic switch-over time or remote selection
| • DIN rail carrier as standard (TS35 DIN rail)
• High quality rising clamp terminals
|
Input / Output
| 0-10Vdc or 0-24Vac at < 10mA. See Operation and connections for currents > 10mA
| Select input
| VFC or open-collector to switch 24Vdc at 10mA
| Power supply
| 24Vac +/-10% at 30mA or 24Vdc +/-10% at 20mA
| Relay life mechanical
| 100 million operations minimum
| Timing
| 15 or 30 seconds or remotely switched
| Timing tolerance
| +/-10%
| Terminals
| Rising Clamp for 0.5-2.5mm² cable
| Ambient temperature range
| 0°C to 50°C
| Dimensions
| 34(W) x 83(H) x 47(D) mm maximum
| Weight
| 50g
| Country of origin
| United Kingdom
|
| AX-ASM.pdf / Analogue Switch Modual |  |
|
|
|
