 <<  |  <  |   AX-CAP - Capacitance Level Sensor
AX-CAP-CTR-310-2 / Capacitance level sensor 4-20mA o/p 1.0m probe, Capacitance level sensors for conducting liquids, No display POA Qty
AX-CAP-CTR-315-2 / Capacitance level sensor 4-20mA o/p 1.5m probe, Capacitance level sensors for conducting liquids, No display POA Qty
AX-CAP-CTR-320-2 / Capacitance level sensor 4-20mA o/p 2.0m probe, Capacitance level sensors for conducting liquids, No display POA Qty
AX-CAP-CTR-325-2 / Capacitance level sensor 4-20mA o/p 2.5m probe, Capacitance level sensors for conducting liquids, No display POA Qty
AX-CAP-CTR-330-2 / Capacitance level sensor 4-20mA o/p 3.0m probe, Capacitance level sensors for conducting liquids, No display POA Qty
AX-CAP-CBR-310-2 / Capacitance level sensor 4-20mA o/p 1.0m probe, Capacitance level sensors for conducting liquids, C/W display POA Qty
AX-CAP-CBR-315-2 / Capacitance level sensor 4-20mA o/p 1.5m probe, Capacitance level sensors for conducting liquids, C/W display POA Qty
AX-CAP-CBR-320-2 / Capacitance level sensor 4-20mA o/p 2.0m probe, Capacitance level sensors for conducting liquids, C/W display POA Qty
AX-CAP-CBR-325-2 / Capacitance level sensor 4-20mA o/p 2.5m probe, Capacitance level sensors for conducting liquids, C/W display POA Qty
AX-CAP-CBR-330-2 / Capacitance level sensor 4-20mA o/p 3.0m probe, Capacitance level sensors for conducting liquids, C/W display POA Qty
AX-CAP-CTP-310-2 / Capacitance level sensor 4-20mA o/p 1.0m probe, Capacitance level sensors for non conducting liquids, No display POA Qty
AX-CAP-CTP-315-2 / Capacitance level sensor 4-20mA o/p 1.5m probe, Capacitance level sensors for non conducting liquids, No display POA Qty
AX-CAP-CTP-320-2 / Capacitance level sensor 4-20mA o/p 2.0m probe, Capacitance level sensors for non conducting liquids, No display POA Qty
AX-CAP-CTP-325-2 / Capacitance level sensor 4-20mA o/p 2.5m probe, Capacitance level sensors for non conducting liquids, No display POA Qty
AX-CAP-CTP-330-2 / Capacitance level sensor 4-20mA o/p 3.0m probe, Capacitance level sensors for non conducting liquids, No display POA Qty
AX-CAP-CBP-310-2 / Capacitance level sensor 4-20mA o/p 1.0m probe, Capacitance level sensors for non conducting liquids, C/W display POA Qty
AX-CAP-CBP-315-2 / Capacitance level sensor 4-20mA o/p 1.5m probe, Capacitance level sensors for non conducting liquids, C/W display POA Qty
AX-CAP-CBP-320-2 / Capacitance level sensor 4-20mA o/p 2.0m probe, Capacitance level sensors for non conducting liquids, C/W display POA Qty
AX-CAP-CBP-325-2 / Capacitance level sensor 4-20mA o/p 2.5m probe, Capacitance level sensors for non conducting liquids, C/W display POA Qty
AX-CAP-CBP-330-2 / Capacitance level sensor 4-20mA o/p 3.0m probe, Capacitance level sensors for non conducting liquids, C/W display POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

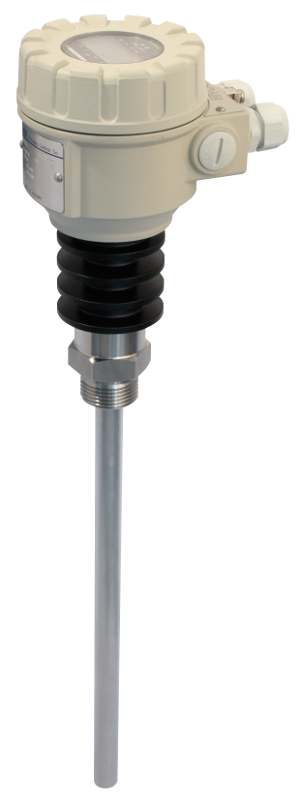

The AX-CAP is a range of capacitance level sensors designed for level measurement in tanks or sumps and provides a 4-20mA output to the BMS system or alarm. There are two ranges, the CTR/CBR range for use in conducting liquids, such as water, and the CTP/CBP range for use in non-conducting liquids, such as oil. The media in a metallic vessel acts as a dielectric, and if an electrode is immersed in it, a capacitor is formed of a certain capacitance value as the level rises or falls this varies linearly and the depth output is converted to the 4-20mA output, proportional to the depth.
Product Features
• Easy range adjustment on site
• Unaffected by vacuum or pressure
• Zero and span adjustment in the head
• Suitable for a wide of media

Power Supply
 12Vdc to 36Vdc
Power Consumption
 Max 800mW
Ranges
 0.5m min to max 3m
Accuracy
 0.02% of measuring range
Output
 4-20mA loop powered
Process Connection
 1” B.S.P.
Process Temperature
 -30 to +30°C max (200°C version available at additional cost
Ambient Temp. Range
 -25 to 70°C
Maximum Pressure
 40Bar at 25°C
Electrode Type for Conducting liquids
 Fully insulated rod or cable
Electrode type for Non Conducting liquids
 Semi insulated rod or cable
Display
 Optional
Protection
 IP67
Electrode Insulation
 Polypropylene
Housing
 ABS (paint coated aluminium at additional cost)
Connections
 Screw terminal
Conformity
 CE marked, EMC, LVD
Country of Origin
 EU

AX-CAP.pdf / Capacitance level sensor
