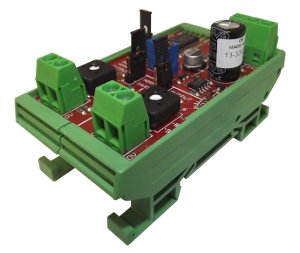

The AX-DAOM converts a 0-10Vdc or 2-10Vdc Input Signal to two 0-10Vdc or 2-10Vdc output signals, with an adjustable dead-band . Either output can be inverted via a jumper . The unit is powered from 24Vac/dc and has Rising Clamp Screw Terminals. The AX-DAOM is designed to mount onto TS35 Section DIN Rail
Product Features
� 2 x 0-10Vdc or 2-10Vdc Outputs � 1 x 0-10Vdc or 2-10Vdc Input � Individual inversion of outputs
� Adjustable Dead-band � High Quality Rising Clamp Terminals � DIN Rail Mounting (TS35)
Supply Voltage
24Vac/dc (+/-15%) 40mA max at 24Vdc
Input Signal
0-10Vdc or 2-10Vdc
Output Signal
2 x 0-10Vdc or 2-10Vdc at max load 10mA each
LED Indicators
Flashes to indicate operation
Terminals
Rising clamp for 0.5-2.5mm² cable
Ambient temperature range
0�C to 50�C
Dimensions
78(W) x 92.5(H) x 50(D) mm (Maximum) (DIN rail version)
