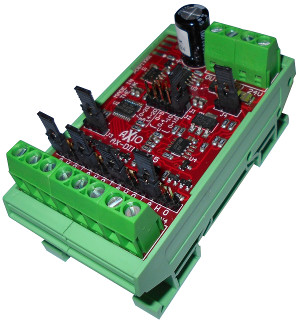

<< | < | AX-DIM4-MI5 - Four Channel Digital Input Multiplexer -Multi Input Version
|
| |
|
The AX-DIM4-MI5 multiplexes four digital signals or four 24Vac/dc inputs into a single analogue output. The analogue output can be configured for various output options making the unit compatible with a large range of BMS equipment. Additionally, jumpers are fitted to allow each input to be manually overridden for commissioning and testing purposes. The output sequences can also be reversed as required by some types of controller and control strategies. The unit jumpers are factory set to operate directly with Trend controllers as default. |
Product Features
| • Expansion of controller input capacity by 4
• 0-5V / 0.4-10V / 0-10V / 0-20mA / 4-20mA output
• Operates from 24Vac or dc power supply
• Input simulation
| • Reverse action selection
• DIN rail mounting
• Selectable 0.4V offset
• LED input status indication
|
Inputs
| Votl free or 24Vac or 24Vdc (>10Vdc = on, <4Vdc = off)
| Output Voltage
| 0-5Vdc / 0.4-10Vdc / 0-10Vdc at 5mA maximum
| Output Current
| 0-20mA / 4-20mA maximum resistance of load 500 Ω
| LED indication
| On when Input is On
| Power Supply
| 24Vac or dc (+/- 15%)
| Power Consumption
| 40mA maximum at 24Vdc
|
| 50mA maximum at 24Vac
| Terminals
| Rising clamp for 0.5-2.5mm² cable
| Ambient temperature
| 0-50°C
| Dimensions
| 47x92.5x47mm (maximum)
| Weight
| 50mgs
| Country of Origin
| United Kingdom
|
| AX-DIM4-MI5.pdf / Four channel digital input multiplexer |  |
|
|
|
