<< | < | AX-DIM5R - Five Channel Digital Input Multiplexer - Resistance output
|
| |
|

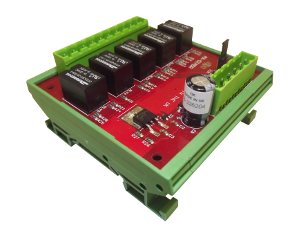

The AX-DIM5R multiplexes 5 digital inputs into one floating resistance output. The resistance output range is designed to interface directly with the TAC Micronet range of controllers, but can also be used with any similar compatible controller. A jumper link allows the option for selecting a parallel 22,1KΩ resistance for use with specific controllers with a limited input range on the universal input. LEDs provide status indication of the inputs and power on. The unit is powered by 24Vac or 24Vdc. The AX-DIM5R is supplied in a DIN rail carrier as standard, but can also be mounted directly to a panel using the four corner mounting holes. |
Product Features
| • Expansion of controller capacity by 5 inputs
• Operates from 24Vac or 24Vdc power supply
| • Floating/isolated resistance output
• DIN rail carrier or panel mounted
|
Inputs
| Volt free or 24Vdc (>18Vdc=on, <24Vdc=off). Must be able to switch 10m
| Output (without Rp selected)
| Normal 779.9 to 1557.9 Ω (see table)
| Output (with Rp selected)
| Normal 752.4 to 1455.3 Ω (see table)
| Output tolerance
| +/- 2.0 Ω nominal maximum
| LED Indication
| Green LED for Power on. Red LEDs on when input on
| Terminals
| Rising Clamp for 0.5-2.5mm² Cable
| Ambient temperature
| 0-50°C
| Dimensions
| 79 (W) x 82 (H) x 51 (D) mm (max). Fits onto standard TS35 DIN rail
| Fixing Holes
| 3.5mm diameter on 67 (W) x 60 (H)mm centers
| Weight
| 105g
| Countey of Origin
| United Kingdom
|
| AX-DIM5R.pdf / 5 Channel Digital Input Multiplexer with Resistance output |  |
|
|
|
