<< | < | AX-DIM6-MI - Six Channel Digital Input Multiplexer - Multiple Input
|
| |
|

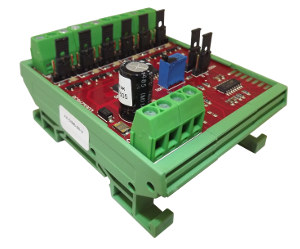

The AX-DIM6-MI multiplexes 6 VFC or 24Vac/dc signals into a single analogue output. 0-10Vdc, 2-10Vdc or 4-20mA, and 0-20mA output variants are available making the unit compatible with a large range of BMS equipment. The input registers as active when the contact is closed. Additionally, jumpers are fitted to allow each input to be manually overriden for commissioning and testing purposes. The output sequence can also be reversed as required by some types of controller and control strategies. |
Product Features
| • 6 x VFC or 24Vac/dc inputs
• Voltage and Current Output Variants
• Operates From 24Vac or dc Power Supply
• Input Simulation
| • Reverse Action
• DIN Rail Mounting
• LED Input Status Indication
|
Inputs
| 6 x Volt free contacts or 24Vac/dc input signals
| Output
| Voltage 0 - 10Vdc at maximum load 10mA. (2-10Vdc link selectable)
|
| Current 4 to 20mA (link selectable 0-20mA), max resistance of load 500W
| Power Supply
| 24Vac or dc (+/-15%)
| Power Consumption
| 24Vdc 40mA max
|
| 24Vac 60mA max
| Terminals
| Rising Clamp for 0.5-2.5mm2 Cable
| Ambient Temp
| 0-50oC
| Dimensions
| 75 x 68 x 45mm (max.)
| Country of Origin
| United Kingdom
|
| AX-DIM6-MI.pdf / Six Channel Digital Input Multiplexer - Multiple Input |  |
|
|
|
