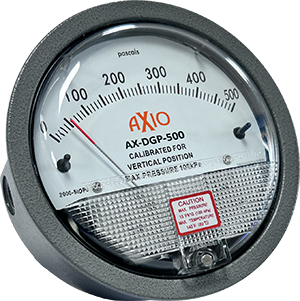

<< | < | AX-DPG - AXIO Differential Pressure Gauges
|
| |
|
|
The AX-DPG Series Differential Pressure Gauges are designed specifically for HVAC/R applications. These gauges measure air and non-corrosive gas pressures (both differential and positive) and feature a clear analogue display for easy reading of measured values.Additionally, the AX-DPG Series includes field-adjustable zero-point calibration and built-in overpressure protection, ensuring reliable and precise performance. |
Product Features
| • Undistorted plastic face
• Quick response to pressure changes
• Durable and rugged housing
| • High-quality components
• Long service life and minimized down-time
• Designed for air and non-combustible gases
|
Medium/Service
| Air and Non-Combustible gasses.
| Housing
| Die cast aluminium case and bezel, with acrylic cover, exterior finish
| is coated Gray to withstand 168 hour salt spray corrosion test.
|
| Accuracy
| ±2% FS (mm unit and the range with the corresponding pA)
| Pressure Range
| -68pA to 108 KpA
| Temperature Range
| -6.67°C to 60°C (20°F to 140°F)
| Enclosure Rating
| IP67
| Hole Size
| 114mm
| Dimensions
| Dia 120.62mm x 55.6mm
| Weight
| 560 Grams
| Mounting Orientation
| Diaphragm in vertical position
| Process Connections
| 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back
| Standard Accessories Included
| Two 1/8" NPT plugs for duplicate pressure taps, two 1/8" pipe thread to rubber tubing adapters and three flush mounting adapters with screws.
| Compliances
| CE, LV Directive 2014/35/EU (EN-60730-1
| Country of origin
| China
|
| AX-DPG.pdf / AXIO Differential Pressure Gauges |  |
|
|
|
