<< | < | AX-DT-V0DD - Digital Timer
|
| |
|

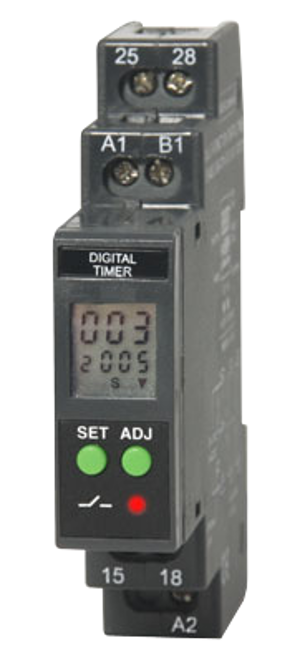

The AX-DT-V0DD range of Digital timers have either 1 x SPDT or 2 x DPST contacts and either 8 or 17 functions and are designed for 24 to 240Vac/dc supply. The units have a slim profile and are designed for DIN rail mounting. |
Product Features
| • Compact 17.5mm width
• Multi-Voltage 24 to 240Vac/dc
• Multi-functional (8 or 17 functions)
| • 3 digit LCD for preset time and run time
• Option to select up/down counting
• Tamperproof with keylock function
|
Power Supply
| 24 to 240Vac/dc -15 to + 10% 50/60Hz
| Power Consumption
| 10VA
| Timing Ranges
| 0.1sec to 999hrs
| Repeat Accuracy
| +/- 0.5% of selected range
| Relay Output
| V0DDTS & V0DDTS1, 1 x C/O SPDT
|
| V0DDTD & V0DDTD1, 2 x NO DPST
| Switching Contacts
| 8A @240Vac resistive
| Functions
| V0DDTS & V0DDTD, 8
|
| V0DDTS1 & V0DDTD1, 17
| LCD Display
| 3 digit LCD
| LED Indication
| Red LED relay ON
| Protection
| IP30 enclosure IP20 terminals
| Mounting
| DIN
| Dimensions
| 17.5 x 89 x 76 mm
| Weight
| 85 gms
| Terminals
| Terminals for 0.5 to 2.5mm2 cable
| Ambient Range
| -10 to +55°C 10 to 93% RH non condensing
| Approvals
| CE, UL
| EMC
| CISPR 14-1 Class B, IEC 61000-4-2 level 11, IEC 61000-4-4 level 1V
|
| IEC 61000-4-5 level 11V, IEC 61000-4-11, IEC 68-2-6
|
| AX-DT-V0DD.pdf / Digital Timer |  |
|
|
|
