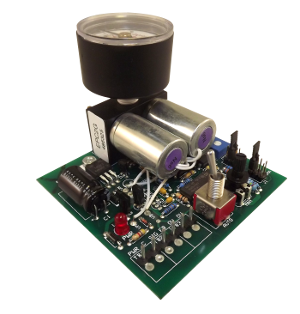

<< | < | AX-EPC - Analogue to Pneumatic Converter
|
| |
|
The AX-EPC range is an analogue to pneumatic convertor which converts an analog input signal to a proportional pneumatic output, modulating its control valve(s) to regulate the branch line pressure to the set point determined by the input signal. Output pressure ranges are jumper shunt selectable for 0 to 10, 0 to 15 and 0 to 20 psig, and adjustable in all ranges. A 0-5 VDC feedback signal indicating the resultant branch line pressure, is also provided. AX-EPC’s are designed with electrical terminals on one end and pneumatic connections on the other, allowing for maximum convenience in wiring and tubing installation when panel mounted. |
Product Features
| • Field Selectable Offset and Span
• Field Adjustable Pressure Output Ranges
• Field Selectable Analogue Input Ranges
• Closed Loop control
• Analogue feedback on branch pressure
• Not position sensitive
| • Manual / auto toggle switch reports override status to controller
• Pneumatic valve & Damper actuator control
• Fan Vane control
• DDC control
• Pilot Positioner control
• Mixing & VAV Boxes
|
Power Supply
| 24Vdc +10/-5%
|
| 24Vac +/-10% 50/60Hz
| Current
| 180mA max (200mA on AX-EPC2-FS)
| Inputs
| 0-5Vdc, 0-10Vdc, 0-15Vdc, 0-20mA @250Ohms
| Feedback Output Signal
| 0-5Vdc
| Air Supply
| Maximum 25psig min 18psig (main pressure must be 2psig above max o/p)
| Air Supply Consumption
| 15psig (750scim) supply valve
| AX-EPC2-LG
| 30psig (1400 scim) supply valve
| Output Pressure Range
| 0-10, 0-15, 0-20 psig jumper selectable
| Manual Auto Override
| Manual - output can be varied Auto - output controlled by input
| Manual Auto Override Feedback
| Dry Contact 24Vac/dc 1A Max N.O.
| Accuracy
| 1% @ room temperature
| Pneumatic Capacity
| Supply Valves @ 25psig
| Filter
| 80-100 integral-in-barb micron filter (except-LG with a 5 micron filter)
| Electrical Terminals
| 14 Gauge wire plug in blocks
| Pneumatic Fittings
| Brass barbed 1/8” FNPT
| Pneumatic Tubing Size
| 1/4” OD 1/8” ID nominal
| Ambient Temp
| 0-50oC Humidity
| Dimensions
| 85(L) x 85(W) x 45(H) mm (-G = 82mm high)
| Weight
| single valve 142gms (pcb only)
|
| dual valve 196gms (pcb only)
|
| gauge add 65gms
| Country of Origin
| U.S.A.
|
| AX-EPC.pdf / Analogue to Pneumatic Converter |  |
|
|
|
