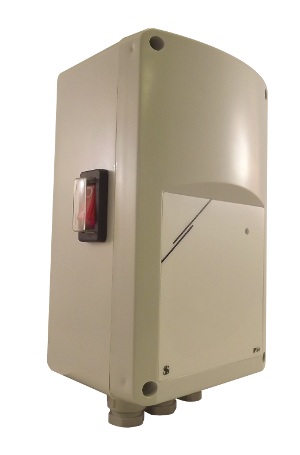

<< | < | AX-FC-EVS - Electronic Fan Speed Controller
|
| |
|
The AX-FC-EVS electronic speed controllers are designed for the automatic regulation of single-phase, voltage-controllable electric motors (230V AC, 50/60 Hz). Equipped with Modbus RTU communication, the units provide remote control capability, adjustable off-level settings, configurable minimum and maximum output voltages, and a time-limited motor operation mode activated via a logic or switch input. |
Product Features
| • Electronic Speed Control
• Modbus RTU (RS485) communication
• 1.5A, 3A, 6A and 10A Models
• Invertible Analogue input signal 0-10/10-0V DC or 0-20/20-0mA
• Suitable for 230Vac 50/60Hz Motors
• Wall Mount Unit
| • Green LED operating indication
• Illuminated power switch
• 1 regulated output for the motor
• 1 unregulated output (230V AC / maximum 2A) for 3-wire motor connection or voltage supply
• 1 low voltage supply output (+12V DC / 1mA) for external 10kΩ potentiometer
• Minimum and maximum output voltage setting by trimmers or via Modbus
|
Power Supply
| 230V AC ±10%, 50/60Hz
| Analogue Input
| 0-10/10-0V DC or 0-20/20-0mA
| Logic Input
| Timer start (min. 2.5V DC > 30ms)
| Max Load
| Every version have different load.
| Output
| Regulated = 30 -100%, (69-230V AC)
| Unregulated = 230V AC / maximum 2A
|
| Minimum Output (V) Settings
| (Umin) 30-70%, (69-161V AC)
| Maximum Output (V) Settings
| (Umax) 75-100%, (175-230V AC)
| Off Level
| Ascending Model (0-4V DC / 0-8mA)
| Descending Model (10-6V DC / 20-12mA)
|
| Supply Output
| +12V DC / 1 mA
| Ambient Temp
| -20 - 40°C
| Ambient Humidity
| 0-80% RH (Non-Condensing)
| Ingress Protection
| IP54 (EN 60529)
| COO
| Made in Belgium
|
| AX-FC-EVS.pdf / Electronic Speed Controller For Small Motors |  |
|
|
|
