<< | < | AX-FRM3+1 - Fan Speed 3+1 Relay Module
|
| |
|

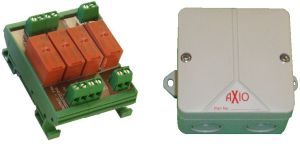

The AX-FRM3+1 has three interlocked relays and an additional independent relay, all on one module. It is intended to be used as a fan speed switch with additional auxiliary switch. The unit can be used to change fan speeds on fan motors with multi-tapped windings and also transformer speed controlled motors. The 'break before make' design of the relay contact configuration and common switching point ensure that only one set of contacts is active at any one time, thus preventing short circuits. |
Product Features
| • Interlocked relays allow only one output on at a time
• Low and high voltage relay coil options
| • Enclosure options - DIN rail or IP65 enclosed
• Switches up to 12 Amps resistive
|
Inputs
| 230Vac or 24Vac options
| Outputs Fan speed
| Common and 3 volt-free contact switched outputs
| Outputs Additional relay
| Change-over contacts
| Contact rating
| 12A @250Vac resistive (inductive rating depends on load - typically 5A max)
| Terminals
| Rising Clamp for 0.5-1.5mm² Cable
| Ambient Temperature
| 0°C to 50°C
| Dimensions Din rail version
| 70 x 77 x 49mm (max.) Fits on to standard TS35 DIN rail section
| Dimensions Enclosed version
| 113mm x 93mm x 55mm height
| Fixing Holes Enclosed version
| 2 off 4mm holes on 103mm centres
| Housing Enclosed version
| IP65 flame retardant ABS
| Weight AX-FRM3+1
| 100g
| Weight AX-FRM3+1-xxxE
| 200g
| Country of origin
| United Kingdom
|
| AX-FRM3+1.pdf / Fan Speed Relay Module + Additional Relay |  |
|
|
|
