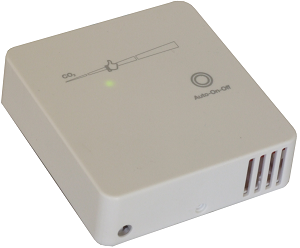

<< | < | AX-GS-CD-T51S - Carbon Dioxide Switch
|
| |
|
The AX-GS-CD-T51S Is a low cost wall mounted CO2 switch for ventilation control. The unit incorporates an intuitive Visual Level Indicator display for CO2 thresholds to maintain air quality in enclosed spaces (i.e. school classrooms, offices, gymnasiums, theatres etc) |
Product Features
| • Wall mounting
• Monitors CO2 over range 0 to 2,000 ppm
• 230Vac Power supply
| • 230V 8A rated output relay
• 15 year calibration interval
• Intuitive Light Display
|
Sensor Type
| Non-dispersive Infra-red
| Range
| 0-2000ppm standard,
| Calibration Interval
| 15 Years
| Accuracy
| +/- 20ppm
| Stability
| Self Calibrating <2% FS over life of sensor (typical 15yrs)
| Temperature Dependance
| 0.2% FS per °C
| Power Supply
| 85Vac to 265Vac 50/60Hz
| Consumption
| <1.5 W @nominal voltage of 230Vac
| Ambient Temp. Range
| 0 to +50°C , 0-95% RH non condensing
| Switch
| Auto-On-Off
| LED Displays
| <800 Blue
|
| <1200 Green
|
| <1500 Yellow
|
| <2000 Single Red
|
| >2000 Double Red
| Housing
| Flame retardant ABS
| Dimensions
| 87 x 82 x 27 mm
| Outputs
| Volt-free
| Output Switch Levels
| User selectable at 1000ppm(default) or 1500ppm with hysteresis of 300ppm
| Anti Recycle Time
| Min On/Off period 10 minutes in Auto
| Conformity
| CE marked, EMC, LVD.
| Country of Origin
| UK
|
