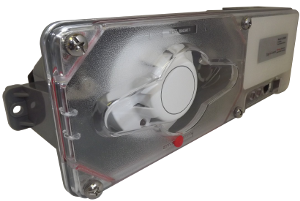

<< | < | AX-GS-SD - Duct Smoke Detector - Photoelectric
|
| |
|
The AX-GS-SD Duct Smoke Detector has the option of either a Photoelectric sensor or an Ionisation sensor for high temperature applications, the sensor heads are interchangeable. The sensors samples air currents passing through a duct using a range of sampling tubes and has 2 alarm relay outputs to switch on fans, blowers etc and send an alarm to the BMS or alarm panel. |
Product Features
| • 24Vac/dc or 120/240Vac versions
• Simple change out of Photo or Ion heads
• Range of sampling tubes for ducts 1’ to 12’
| • Clear cover for easy visual inspection
• Built in reset switch that is also alarm test switch
• 2 x Alarm relay outputs
|
Sensor Type
| 4 wire Photoelectric
| Power Supply
| 24Vac/dc or 120/240Vac
| Power Requirement
| standby
|
| 24Vdc 13.5mA
|
| 230Vac 7.9mA
|
| alarm current
|
| 24Vdc 128.7mA
|
| 230Vac 16.0mA
| Relay Contact Rating
| 2 x 5A resistive @230Vac alarm contacts
|
| 1 x 5A resistive @230Vac trouble contact
| Air Velocity
| 0.5 to 20 m/sec
| Ambient Temp. Range
| AX-GS-SD2000-P
| Housing Dimensions
| 343(L) x 115(H) x 58(D) mm
| Protection
| electronics housing
| Weight
| 1.14Kgs
| Conformity
| CE marked, UL listed, CSFM, EMC, LVD.
| Country of Origin
| USA
|
| AX-GS-SD.pdf / Duct Smoke Detector |  |
|
|
|
