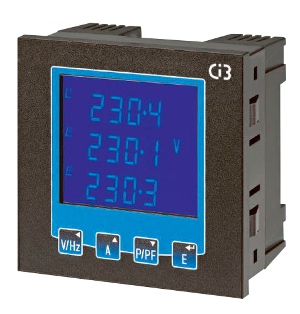

<< | < | AX-KWH-CI3 - Panel Mount kWh Meter - Three Phase
|
| |
|
AX-KWH-Ci3 meter is an accurate and cost effective solution for measurement and display of all major electrical and power quality parameters. Its easy programming,mounting and user friendly navigationmakes the Ci3 dms the ideal choice for customers who require reliable energymeasurement. The unit is mounted in a DIN 96 panel mounted enclosure, has a backlit LCD display and user programmeable CT ratios . The Ci3 measures 17 electrical parameters including total harmonicdistortion (THD) measurement up to the 31st harmonic |
Product Features
| • DIN 96 enclosure
• BacklitLCD screen
• Bezel depth 6.1mm
• Plug-in output modules
| • ProgrammableCT ratio
• TrueRMSmeasurement
• User programmable system configuration
• Exceptionallycost effective
|
Nominal Input Voltage Range
| 100 to289VacL-N (175 to 500VacL-L)
| Maximum Voltage Overload
| 120%of nominal
| Maximum Short Duration Voltage
| 2x rangemaximun
| Nominal Burden
| < 0.2VAper phase
| Nominal Input Current
| 5AAC rms
| Max Overload Current
| 6A
| Maximum Short Duration Current
| 50A
| Auxiliary Operating Range
| 110 to 400Vac nominal +/- 10%or 120 to350Vdc +/- 20%
| Accuracy
| Voltage V 0.5%
|
| Current A 0.5%
|
| Frequency Hz 0.1Hz
|
| Power factor PF 1% of unity
|
| Active power W +/- 1%of range
|
| Reactive power VAr +/- 1%of range
|
| Apparant power VA +/- 1%of range
|
| Active energy kWh Class1 (IEC62053-21)
|
| Reactive energy kVArh +/- 1%of range
|
| THD 1% up to 31st Harmonic
|
| Response time 1 sec
| Output Modules Optional
| Pulsed output relays 50mA@250Vac (2)
|
| Modbus 2-wire half duplex
|
| baud rate 2400, 4800, 9600, 19200, 38400
| Enclosure
| DIN96 panelmount
| Dimensions
| 96x96x64.1mm
| Cutout
| 92x92mm
| Operating Temperature Range
| -10 to + 55°C (0-90%RHnon-condensing)
| Front Protection Rating
| IP52 (case rating IP 30)
| Weight
| 300gms
| Conformity
| IEC61326,IEC61010-1,IEC62053-21
| Country ofOrigin
| United Kingdom
|
| AX-KWH-CI3.pdf / Panel Mount kWh Meter - Three Phase |  |
|
|
|
