<< | < | AX-LCD-1 - LCD Display on a single gang plate
|
| |
|

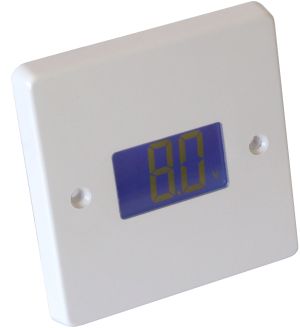

LCD Voltmeter mounted on a single gang front plate, the 19mm height display is scaled over various ranges at 0-10Vdc. The units accept either a 24Vac or dc supply and will fit to a standard 47mm backbox. The LCD is backlit. |
Plate Size
| Single gang
| Backbox
| (not supplied) Standard metal backbox 47mm deep
| Plate Material
| White ABS Plastic
| Ranges
| refer to data sheet for order codes
| LCD Display
| 3 digit 7 Segment 19mm height blue backlight
| Power Supply
| 24Vac/dc at 30mA max
| Input Signal
| 0-10Vdc
| Terminal Connections
| 2-part rising clamp terminals for 1.5mm2 cable
| Dimensions
| 86(W) x 86(H) x 42(D)mm (13mm from surface)
| Weight
| 85gms
|
| AX-LCD-1.pdf / LCD Voltmeter mounted on a single gang ABS front plate |  |
|
|
|
