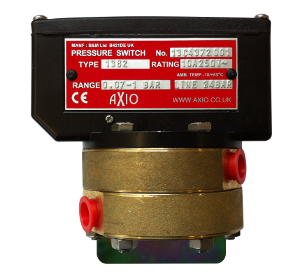

<< | < | AX-LDPS-1382 1482 - Liquid Differential Pressure Switches
|
| |
|
The AX-LDPS-1382/1482 range of differential pressure switches is a low cost pressure monitoring solution for liquids and non aggressive gases. The unit is designed for both flow proving and flow failure detection with models available to cover a wide differential pressure range. |
Product Features
| • Adjustable Differential
• Changeover contacts to suit many applications
• Complete with mounting bracket
| • Suitable for use with mains voltage
• Optional integrated 4-pin plug (-P)
|
Range - AX-LDPS1382-1
| Pressure range 0.07 to 1 bar, hysteresis 0.04 bar
| Range - AX-LDPS1382-4
| Pressure range 0.2 to 4 bar, hysteresis 0.07 bar
| Range - AX-LDPS1382-11
| Pressure range 0.5 to 11 bar, hysteresis 0.3 bar
| Range - AX-LDPS1382-28
| Pressure range 2 to 28 bar, hysteresis 0.6 bar
| Range - AX-LDPS1482-125
| Pressure range 5 to 125 mbar, hysteresis 2.5 mbar
| Range - AX-LDPS1482-250
| Pressure range 15 to 250 mbar, hysteresis 4 mbar
| Range - AX-LDPS1482-400
| Pressure range 25 to 400 mbar, hysteresis 10 mbar
| Max. Line Pressure
| >250 mbar 34 bar max
| Max. Line Pressure
| <125 mbar 14 bar max
| Out of balance Pressure
| 4 x pressure range
| Pressure Connections
| 1/8” BSP female Brass
| Electrical Connection
| Screw terminals - max conductor size 1.5mm2
| Switch Rating
| 10A @250Vac inductive load 1A@30Vdc inductive load
| Materials - Housing
| Aluminium/ Zinc diecast
| Materials - Diaphragm
| Beryllium Copper
| Materials - Seals
| Nitrile Rubber
| Materials - Connections
| Brass
| Media Temp
| -10°C to +85°C
| Protection
| IP65
| Country of Origin
| UK
|
| AX-LDPS1382,1482.pdf / Liquid Differential Pressure Switches |  |
|
|
|
