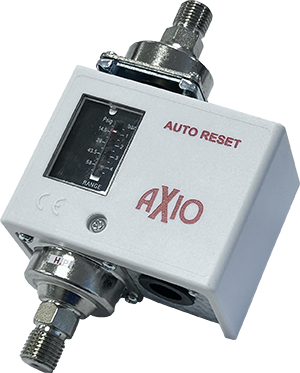

<< | < | AX-LDPS-FD113-2 - Liquid Differential Pressure Switch - AXIO(0.4 - 4.5 Bar)
|
| |
|
|
The AX-LDPS-FD113-2 Differential Pressure Switch is a pressure monitoring solution for liquids and non aggressive gases. The unit is designed for both flow proving and flow failure detection to cover the range of 0.3 to 4.5 Bar. Approximate setpoint can be viewed on the dial at the front of the unit. The AX-LDPS-FD113-2 uses the differential pressure between the two inputs to operate an electrical switch. Applications include refrigeration and air-conditioning systems according to EN378 e.g. Compressor oil pressure control. |
Product Features
| • Adjustable Differential
• Fully mechanical switching
• Changeover contacts to suit many applications
| • Suitable for use with mains voltage
• Mounting brackets included for easy mounting
|
Range
| 0.4 to 4.5 Bar
| Factory Settings
| 0.3 Bar
| Maximum Pressure
| 16.5 Bar
| Pressure Connections
| 1/4” BSP
| Electrical Connection
| Screw Terminals - max conductor size 1.5mm²
| Switch Rating
| Non Inductive Current
| Inductive Current (Full Load)
| 8Amp @ 250Vac
| Inductive Current (Locked Rotor)
| 72Amp @ 250Vac
| Weight
| 0.42 Kg
| Ambient Temperature
| -20°C to 70°C
| Media Temperature
| -20°C to 120°C
| Protection Class
| IP33
| Marking
| CE Approved (According to Low Voltage Directive)
| Material
| itting
| Wetted Parts
| Nickel Plated Brass
| Switch Back Plate
| Zinc plated mild steel
| Housing Cover
| Plastic
| Country of Origin
| China
|
| AX-LDPS-FD113-2.pdf / Liquid Differential Pressure Switch (0.4 - 4.5 Bar) |  |
|
|
|
