<< | < | AX-LDPT250 - Liquid Differential Pressure Transmitters-AXIO
|
| |
|
|

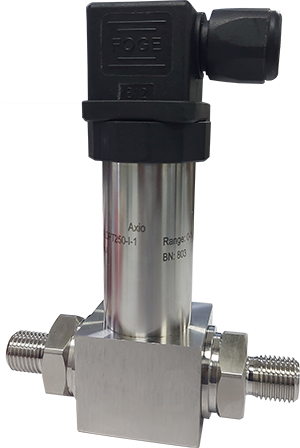

The AX-LDPT250 Differential Pressure Transmitters are piezo-resistive sensor for pressure monitoring of liquids and non aggressive gases. The units are available in a number of different ranges with either a 4-20mA or 0-10Vdc output signal. Mechanical connection is via 1/4” BSP parallel male Stainless Steel 316 connectors and Hirschman Plug for electrical connection. The AX-LDPT250 units supports mounting as well. |
Product Features
| • Complete Stainless Steel 316 Unit
• 0-10Vdc and 4-20mA variants
| • 1/4” BSP male connection
• Hirschman Plug for electrical connection
|
Range
| 160, 400mbar and 1, 2, 4, 7, 10 and 16bar
| Proof Pressure
| 1.5x FS
| Brust Pressure
| 3x FS
| Pressure Connection
| 1/4” BSP male stainless steel 316
| Power Supply
| 12 to 32Vdc
| Output
| 4-20mA & 0-10V
| Accuracy
| 0.25% FS
| Repeatability
| 0.2% FS/year typical
| Operating Temperature
| -30°C to +70°C
| Storage Temperature
| -40°C to +85°C
| Dimensions
| 72.6mm(L) x 130mm(H)
| Weight
| 0.42kg
| Protection
| IP65
| Approval
| CE
| Country of origin
| United Kingdom
|
| AX-LDPT250.pdf / Liquid Differential Pressure Transmitters-AXIO |  |
|
|
|
