<< | < | AX-LDPT250F - Liquid Differential Pressure Transmitters-Female Connector-AXIO
|
| |
|
|

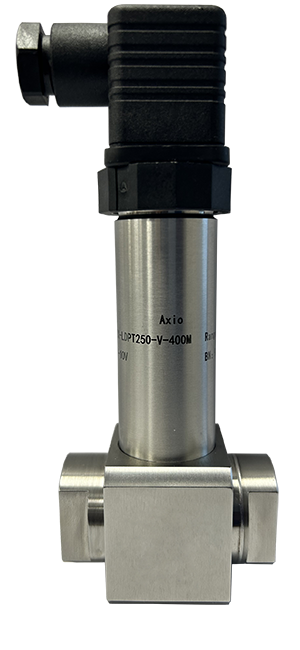

The AX-LDPT250F Differential Pressure Transmitters are piezo-resistive sensor for pressure monitoring of liquids and non aggressive gases. The units are available in a number of different ranges with either a 4-20mA or 0-10Vdc output signal. Mechanical connection is via 1/4” BSP parallel female Stainless Steel 316 connectors and Hirschman Plug for electrical connection. The AX-LDPT250F units supports mounting as well. |
Product Features
| • Complete Stainless Steel 316 Unit
• 0-10Vdc and 4-20mA variants
| • 1/4” BSP female connection
• Hirschman Plug for electrical connection
|
Range
| 0-1, 0-2, 0-4, 0-7, 0-10 and 0-16bar
| Overpressure
| =2 times FS, Negative pressure not allowed
| Maximum Static
| =200bar
| Long-term Stability
| ±0.5%FS/year (= 2bar), ±0.2%FS/year (>2bar)
| Pressure Connection
| 1/4” BSP female stainless steel 316
| Electrical Connection
| Angular Connector, Hirschman Plug
| Power Supply
| 250F-V Variants 24V ac/dc ±15%
| 250F-I Variants 12 - 24V dc
|
| Output
| 250F-V Variants 0-10Vdc Load Impedance > 10KOhms
| 250F-I Variants 4-20mA Load Impedance <600 Ohms @24Vdc
|
| Accuracy
| 0.25% FS
| Operating Temperature
| -30°C to +80°C
| Dimensions
| 58mm(L) x 147.2mm(H)
| Weight
| 0.6kg
| Diaphragm
| Stainless Steel 316L
| Pressure port
| Stainless Steel 316L
| Housing
| Stainless Steel 316L
| Protection
| IP65
| Approval
| CE
| Country of origin
| United Kingdom
|
|
|
| AX-LDPT250F.pdf / Liquid Differential Pressure Transmitters-Female Connector-AXIO |  |
|
|
|
