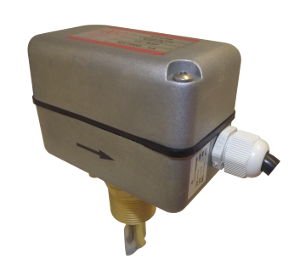

<< | < | AX-LFS - Liquid Flow Switch
|
| |
|
The AX-LFS is a range of paddle switches designed to monitor liquid flow in pipes and provide a switched output upon detection of either a specific flow rate or flow failure. The unit screws directly into a 1” BSPT boss and has adjustable paddle lengths. |
Product Features
| • Adjustable switching point
• Rated at 15A @ 230Vac
| • Stainless Steel Paddle
• Suitable for a wide range of media
|
Switch Rating
| 15Amp SPDT @ 230Vac
| Protection
| IP65
| Materials
| Paddle Stainless steel
|
| LFS-B1, B2 Rod Brass
|
| LFS-S1A, S2 Rod Stainless Steel
|
| Enclosure Thermoplastic
| Operating Temperature
| -20 to +110 deg C
| Dimensions
| 113 x 70 x 65mm
| Weight
| 670gms
| Country of Origin
| EU
|
| AX-LFS.pdf / Liquid Flow Switch |  |
|
|
|
