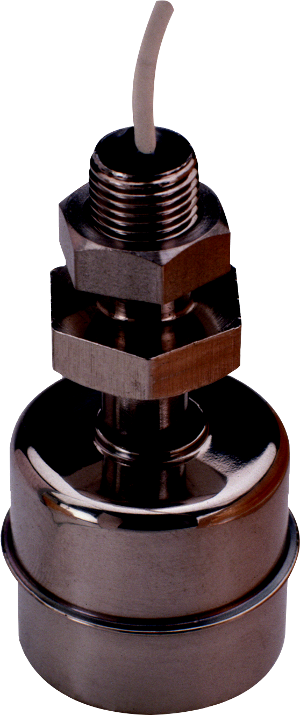

<< | < | AX-LS-RFS-2-2 - Stainless Steel Liquid Level Switches -Top mount
|
| |
|
The AX-LS-RFS-2-2 is a very small low cost stainless steel top mount level switch suitable for water level control applications. As the liquid level changes, the float follows the surface level and the reed switch activates. The unit can operate in a wide range of liquids. |
Product Features
| • Easy Installation
• N/O or N/C Contact
• Stainless Steel 316
| • Pressure up to 10 bar
• 1/8” BSP Thread with nut
• Suitable for a wide range of liquids
|
Fitting
| 1/8” BSP
| Maximum Voltage
| 240Vac
| Reed Switch Rating
| 50VA
| Maximum Current
| 0.5A (resistance)
| Maximum Pressure
| 10bar
| Maximum Temperature
| 120 Deg C
| Materials
| Stainless Steel 316
| Specific Gravity
| 0.75 SG
| Thread Type and Length
| 1/8” BSP x 15mm
| Float Dimensions
| 28 dia x 27mm
|
| AX-LS-RFS-2-2.pdf / Stainless Steel Liquid Level Switches -Top mount |  |
|
|
|
