 <<  |  <  |   AX-LSPTA - Static Pressure Transmitter (Air/Liquid)
AX-LSPTA-I-500m / Static pressure transmitter, 0-500 mbar, 4-20mA POA Qty
AX-LSPTA-I-1 / Static pressure transmitter, 0-1 bar, 4-20mA POA Qty
AX-LSPTA-I-2.5 / Static pressure transmitter, 0-2.5 bar, 4-20mA POA Qty
AX-LSPTA-I-4 / Static pressure transmitter, 0-4 bar, 4-20mA POA Qty
AX-LSPTA-I-6 / Static pressure transmitter, 0-6 bar, 4-20mA POA Qty
AX-LSPTA-I-10 / Static pressure transmitter, 0-10 bar, 4-20mA POA Qty
AX-LSPTA-I-16 / Static pressure transmitter, 0-16 bar, 4-20mA POA Qty
AX-LSPTA-I-25 / Static pressure transmitter, 0-25 bar, 4-20mA POA Qty
AX-LSPTA-I-30 / Static pressure transmitter, 0-30 bar, 4-20mA POA Qty
AX-LSPTA-V-500m / Static pressure transmitter, 0-500 mbar, 0-10V POA Qty
AX-LSPTA-V-1 / Static pressure transmitter, 0-1 bar, 0-10V POA Qty
AX-LSPTA-V-2.5 / Static pressure transmitter, 0-2.5 bar, 0-10V POA Qty
AX-LSPTA-V-4 / Static pressure transmitter, 0-4 bar, 0-10V POA Qty
AX-LSPTA-V-6 / Static pressure transmitter, 0-6 bar, 0-10V POA Qty
AX-LSPTA-V-10 / Static pressure transmitter, 0-10 bar, 0-10V POA Qty
AX-LSPTA-V-16 / Static pressure transmitter, 0-16 bar, 0-10V POA Qty
AX-LSPTA-V-25 / Static pressure transmitter, 0-25 bar, 0-10V POA Qty
AX-LSPTA-V-30 / Static pressure transmitter, 0-30 bar, 0-10V POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

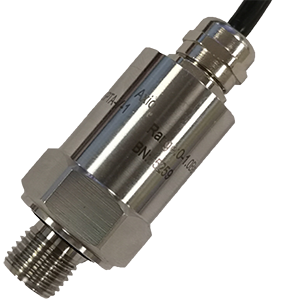

The AX-LSPTA range of pressure transmitters are a cost effective pressure monitoring solution for liquid and non-aggressive, non-combustible gases. The units are available in a number of different ranges with either a 4-20mA or 0-10Vdc output signals. Mechanical connection is via a ¼” BSP male thread and electrical connection is made via a one meter cable.
Product Features
• Robust 316L Stainless Steel construction
• 1/4" BSP pipe connection
• 0-10Vdc and 4-20mA variants
• Complete with 1m cable

Range
 500 mbar to 30 bar - (higher values available)
Over Pressure
 300% FS (<70kPa), 200% FS (<10MPa)
Accuracy
 ±0.25% typical, ±0.5% Full Scale
Pressure Connection
 1/4” BSP Male
Electrical Connection
 1m Cable
Power Supply 0-10Vdc
 15 - 36Vdc
Power Supply 4-20mA
 12 - 36Vdc
Load Resistance 0-10Vdc
 >10kOhms
Loop resistance 4-20mA
 <(Vsupply-12)/0.02A
Material
 316L Stainless Steel
Operating Temp
 -20°C to +85°C
Dimensions
 67mm long x 24mm diameter maximum
Weight
 145grams
Protection
 IP65
Approvals
 CE

AX-LSPTA.pdf / Static Pressure Transmitter
