<< | < | AX-MA - Alarm Integration Modules
|
| |
|

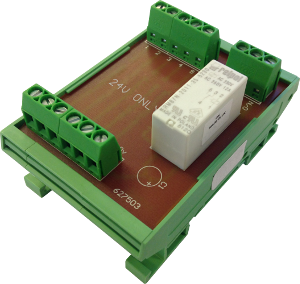

The AX-MA-xx series of Alarm Integrators monitor up toeither 10 or 20 Input Channels and provide a relayoutput in the event of an alarm signal appearing on anyone or more inputs. The AX-MA-xx Alarm Integratorsare self-powered from the alarm input and are designedfor mounting on TS35 section DIN rail. The 20 channelunits have a mute facility. |
Product Features
| • Either 10 or 20 input channels
• 1 x SPCO Relay Outputs
• Self powered
| • DIN Rail Mounting (TS35)
• 24Vac/dc, and 230Vac versions available
• 20 channel version has sounder with mute
|
Alarm Inputs
| AX-MA-10-24 10 x 24Vac/dc
|
| AX-MA-10-230 10 x 230Vac
|
| AX-MA-20-24 20 x 24Vac/dc
|
| AX-MA-20-230 20 x 230Vac
| Output
| AX-MA-10 versions 1 x SPCO Relay
|
| AX-MA-20 versions 1 x SPNO Relay
| Contact Rating
| AX-MA-10 versions 12A@230Vac (resistive)
|
| AX-MA-20 versions 8A@230Vac (resistive)
| Power Supply
| 24Vac versions, Self-Powered from Input
|
| 230Vac versions 230Vac 50/60Hz
| Terminals
| Rising Clamp for 0.5-2.5mm2 cable
| Dimensions
| AX-MA-10-24 85 x 55 x 61mm approx.
|
| AX-MA-10-230 85 x 55 x 61mm approx
|
| AX-MA-20-24 85 x 80 x 61mm approx
|
| AX-MA-20-230 85 x 80 x 61mm approx
| Ambient Temperature
| 0 - 50’C
| Country of Origin
| United Kingdom
| CE
| This product is designed to meet the requirements of CE when correctly installed.
|
| AX-MA.pdf / Alarm Integration Modules |  |
|
|
|
