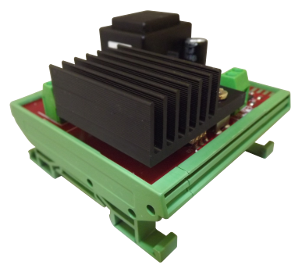

<< | < | AX-MPR1-2 - 2kW Din Mount Heating Regulator, Single Phase, 230V supply
|
| |
|
The AX-MPR1-2 DIN Rail mounting Power Regulators provide continuously adjustable control of electric heating loads from a 0-10V control input. Applications include electric heating coils, heating cables and electric furnaces. The AX-MPR1-2 uses solid-state switching with ‘zero crossing technology’ for minimum RFI and provides accurate switching control. The unit features over temperature protection with automatic reset, LED Indication of Output ON and are designed to mount on TS35 section DIN Rail. No additional heatsinks are needed. |
Product Features
| • 0-10Vdc Control Input
• 2kW Output
• Burst-fire Control
• Auto Reset Over Temperature Protection
| • Line Powered
• Neutral Pass Through Terminals
• LED Indication
• DIN Rail (TS35) Mounting
|
Input
| 0-10Vdc
| Power Supply
| Line powered
| Max Heater Duty
| See datasheet
| Rated Load
| See datasheet
| Rated Supply
| 220 - 255V ac / 50-60Hz
| LED Indication
| ON when output is on.
| Dissipated Heat
| See datasheet
| Control Terminals
| Rising Clamp for 0.5-2.5mm² Cable
| Power Terminals
| Rising Clamp for 2.5mm² Stranded or 4mm² Solid Core Cable
| Ambient Temp Range
| 0 to 55°C Note; The units are rated at 40°C. If using at higher ambient temperature de-rate the units by 10% for every 5°C above 40°C.
| Dimensions
| See datasheet
| Weight
| See datasheet
| Country of Origin
| United Kingdom
|
| AX-MPR1-2.pdf / 2kW Single Phase Power Regulator |  |
|
|
|
