<< | < | AX-MPR1-4,6,9-RL - 4kW to 9kW Single Phase Power Regulators with Raise/Lower Input
|
| |
|
|

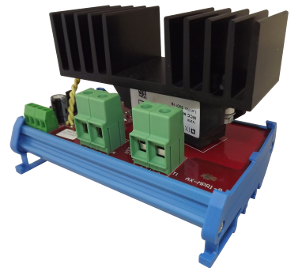

The AX-MPR1-x-RL Din Rail mounting range of Power Regulators is design ed to operate from the output of a raise lower valve controller. The normal Raise/Lower (valve open/close) signal is converted to a pulse width modulatedoutput for an electric heater. The AX-MPR1-x-RL range are intended to operate with a 2.5 minute signal from a fully closed to fully open; the output tracks the inputs in a linear fashion, automatically calibrating each time the minimum or maximum extremes are met. The output to the electric heater is controlled by solid-state switching with “zero crossing” technology to reduce RFI problems and provide accurate switching control. LED indication of Output On. |
Product Features
| • 24Vac Raise/lower Input
• 4kW, 6kW and 9kW Models
• PWM Control
| • 24Vac/dc Powered (AX-MPR1-9-RL line powered)
• DIN Rail (TS35) Mounting
• LED Indication
|
Input
| 24Vac Raise/Lower Input
| Power Supply
| -4-RL,-6-RL 24Vac/dc ±10%
| -9-RL Line powered
|
| Max. Heater Duty
| See page 2
| Rated Load
| See page 2
| Rated Supply
| 220-255Vac / 50-60Hz
| Power Consumption
| 30mA @ 24Vdc (0.72VA) or 50mA @ 24Vac (1.2VA)
| LED Indication
| ON when output is on
| Dissipated Heat
| See page 2
| Terminals
| Control Rising clamp for 0.5-2.5mm² cable
| Power Rising clamp for 4mm² stranded or 6mm² solid core cable
|
| Amb Temperature Range
| AX-MPR1-9-RL 0 to 55°C Note
| temperature derate the units by 10% for every 5°C above 30°C.
|
| Others 0 to 55°C Note
| The units are rated at 40°C. If using at higher ambient
| temperature derate the units by 10% for every 5°C above 40°C.
|
| Country of Origin
| United Kingdom
|
| AX-MPR1-4,6,9-RL.pdf / 4kW to 9kW Single Phase Power Regulators with Raise/Lower Input |  |
|
|
|
