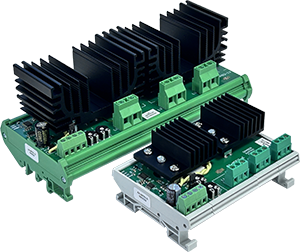

 <<  |  <  |   AX-MPR3-6,12,18 - 6,12 and 18kW Din Mount Heating Regulators, 3 Phase
AX-MPR3-6 / 6kW Three Phase Power Controller POA Qty
AX-MPR3-12 / 12kW Three Phase Power Controller POA Qty
AX-MPR3-18 / 18kW Three Phase Power Controller POA Qty

The AX-MPR3 DIN Rail Series of Power Regulators are designed to provide continuously adjustable control of electric heating loads from a BMS Controller or similar. Applications include electric heating coils, heating cables and electric furnaces. The AX-MPR3 Series use solid-state switching with “zero crossing technology” for minimum RFI and provide accurate switching control. All Power Controllers in this series feature Over Temperature Protection with automatic reset and Alarm Output, LED Indication of Output ON and are designed to mount on TS35 section DIN Rail. No additional heatsinks are needed.
Product Features
• 0-10Vdc Control Input
• 6, 12kW and 18kW Models
• Burst-fire Control
• Auto Reset Over Temperature Protection
• 24Vac/dc Powered
• Alarm Output
• LED Indication
• DIN Rail (TS35) Mounting

Power Supply
24Vac +/-10% or 22 to 40Vdc
Alarm Output
24Vac/dc as power supply - 0V when over temperature alarm is active
Max Heater Duty
See datasheet
Rated Load
See datasheet
Rated Supply
380 - 440Vac / 50-60Hz
LED Indication
ON when output is on.
Dissipated Heat
See datasheet
Control Terminals
Rising Clamp for 0.5-2.5mm² Cable
Power Terminals
Rising Clamp for 4mm² Stranded or 6mm² Solid Core Cable
Ambient Temp. Range
0 to 55° C. The units are rated at 40°C. If using at higher ambient temperature, de-rate the unit by 10% for every 5°C above 40°C .
See datasheet
See datasheet
Country of Origin
United Kingdom

AX-MPR3-6,12,18.pdf / 12kW and 18kW Three Phase Power Regulators
