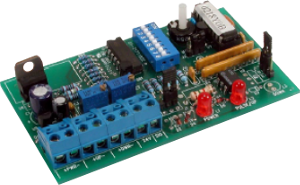

<< | < | AX-MPTA - Pulsewidth to analogue converter
|
| |
|
The AX-MPTA converts a pulsewidth or phase cut input signal into a 0-10 volt analogue output. Various pulsewidths are selectable and if required the input can be isolated. The version 4 can convert a pulse output from a water meter to an analogue signal. The AX-MPTA is supplied in a DIN Rail carrier suitable for mounting on TS35 section DIN Rail and features high quality rising clamp terminals for ease of connection. |
Product Features
| • Selectable input pulsewidth
• Fully isolated Input option
• AC or DC input
• 24V ac or dc powered
• Manual override option
• DIN rail mounting
| • Pulse to analogue converter
• Interface to VFD
• Interface to actuator
• Phase cut to analogue converter
• Duty cycle to analogue control
• Digital to analogue conversion
|
Power Supply
| 21.6 to 26.4Vac or 24 to 35Vdc
| Supply Current
| 240mA max using Voltage output terminal
|
| 125mA max if not using Voltage output terminal
| Inputs
| Signal source - Relay contact closure, Transistor, or Triac (24Vac 50/60hz)
|
| Version 1 - 1/ 0.02 to 5 secs 2/ 01 to 10 secs 3/ 0.59 to 2.94 secs 4/ 0.1 to 25.5 secs
|
| Version 2 - 1/ 0 to 10 secs duty cycle pulse 2/ 0.023 to 6 secs
|
| Version 3 - 1/ 0-20V Staefa phase cut to analogue (trigger level 5% to 95% of phase cut waveform)
|
| Version 4 - Flowmeter ppm to analogue ( 4 ranges see page 5 & 6)
| Output
| Voltage - 8 ranges (0 - 10Vdc standard) at load impedance 400Ω at 10Vdc
|
| Current - 2 ranges (4-20mA standard) 0 to 750Ω max
| Accuracy
| +/- 3% of span.for adjustment ranges 5% for preset
| Power Supply Output
| 24Vdc 48mA max
| Resolution
| 256 steps
| Terminals
| Rising Clamp for 0.5-2.5mm² Cable
| Ambient Temp
| 0-50°C
| Dimensions
| 95 x 58 x 30mm (max.)
| Weight
| 60gms
| Country of Origin
| U.S.A.
|
| AX-MPTA.pdf / Pulsewidth to analogue converter |  |
|
|
|
