<< | < | AX-PCM120I - 120VA Phase-Cut Module (isolated)
|
| |
|

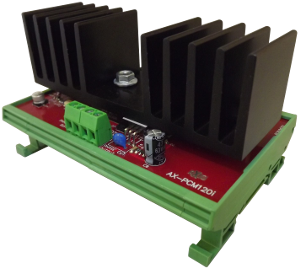

The Axio AX-PCM120i converts a single 0-10Vdc control input signal to a 0-20V, 50Hz phase-cut output, at up to 120VA. The control circuit of the module is powered from 24Vac or 24Vdc (with a common connection to the input signal). A separate input connection is provided for the 24Vac phase-cut load supply. The AX-PCM120i features full opto-isolation of the control signal from the output circuit, to ensure that no grounding conflicts can occur. |
Product Features
| • 120VA 0-20V Phase-Cut Output
• DIN rail carrier as standard (TS35 DIN rail)
• 0-10V control signal input
| • High quality rising clamp terminals
• Fully opto-isolated
• Integral heatsink
|
Control Supply input
| 24Vac/dc (+/-15%), at 25mA maximum
| Control Input Signal
| 0-10Vdc (47k load impedance)
| Phase-cut Load Supply input
| 24Vac, 50Hz rated to drive the load (120VA maximum)
| Phase-cut Load Signal
| 0-20V full wave rectified 50Hz phase-cut at 120VA maximum
| LED indicator
| Provides indication of unit operation (see section below)
| Terminals
| Rising clamp for 0.5-2.5mm2 cable
| Ambient temperature range
| 0°C to 40°C
| Dimensions
| 125(W) x 85(H) x 78(D) mm
| Weight
| 300gms
| Country of origin
| United Kingdom
|
| AX-PCM120I.pdf / 120VA Phase-Cut Module (isolated) |  |
|
|
|
