<< | < | AX-PCM2-30I - DUAL 30VA Phase Cut Module (isolated)
|
| |
|

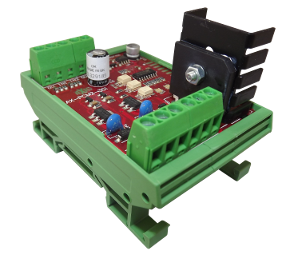

The Axio AX-PCM2-30i converts one or two 0-10Vdc control input signals to one or two 0-20V, 50Hz phase-cut outputs, at up to 30VA each output. The control circuit of the module is powered from 24Vac or 24Vdc (with a common connection to the input signal). A separate isolated input connection is provided for the 24Vac phase-cut load supply. The AX-PCM2-30i features full opto-isolation of the control signal from the output circuit, to ensure that no grounding conflicts can occur. |
Product Features
| • Dual 30VA 0-20V Phase-Cut Outputs
• 0-10V control signal inputs
• Fully opto-isolated
| • DIN rail carrier as standard (TS35 DIN rail)
• High quality rising clamp terminals
• Integral heatsink
|
Control Supply Input
| 24Vac/dc (+/-15%), at 25mA maximum
| Control Input Signals
| 0-10Vdc (47kW load impedance)
| Phase-cut Load Supply Input
| 24Vac, 50Hz rated to drive the load (30VA maximum x2)
| Phase-cut Load Signal
| 0-20V full wave rectified 50Hz phase-cut at 30VA maximum each output
| LED indicators
| Provide indication of unit operation (see section below)
| Terminals
| Rising clamp for 0.5-2.5mm2 cable
| Ambient temperature range
| 0°C to 40°C
| Dimensions
| 57(W) x 85(H) x 60(D) mm
| Weight
| 70 gms
| Country of origin
| United Kingdom
|
| AX-PCM2-30I.pdf / DUAL 30VA Phase Cut Module (isolated) |  |
|
|
|
