<< | < | AX-PET - Plant Extension Timer
|
| |
|

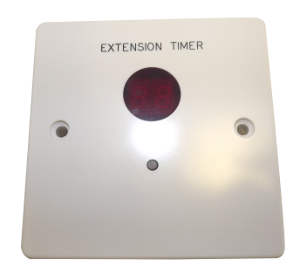

The Axio AX-PET is a ten minute to nine hour electronic time switch with a two digit display and an external inhibit input. The extension time is set by simply pressing a button which also causes the set time to be displayed. Once the countdown has started the display shows the time remaining. The unit can be used to provide energy savings in ventilation, heating, lighting, etc. installations and is ideal for applications where a simple interface is required. |
Product Features
| • 10 minutes to 9 hours extension times
• 24Vac or 230Vac powered
• Inhibit input
| • Digital display of time set / remaining
• Fits a standard one gang back box (UK)
• Simple operation
|
Power Supply
| 24Vac or 230Vac
| Output
| SPNO relay rated for 10A @ 230Vac (Resistive)
| Time Selection
| 10 to 90 minutes in 10 minute increments, then 2 to 9 hours in hourly increments
| Display
| 2 digit 7 segment red LED display
| Protection
| IP40 (When correctly installed)
| Inhibit input
| Volt free contact only
| Terminals
| Rising clamp for 0.5-1.5mm² cable
| Ambient temperature range
| 0°C to 50°C
| Dimensions
| 85 (W) x 85 (H) x 30 (D) mm (Maximum including front plate)
| Weight
| 90gms
| Country of origin
| United Kingdom
|
| AX-PET.pdf / Plant Extension Timer |  |
|
|
|
