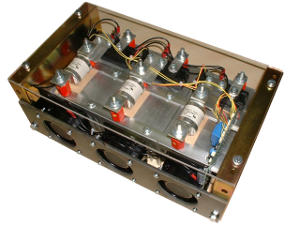

<< | < | AX-PPR3-150 - 150kW Panel Mount Heating Regulator, 3 Phase
|
| |
|
The AX-PPR3-150 Power Regulators are designed to provide continuously adjustable control of electric heating loads from a BMS Controller or similar. Applications include electric heating coils, heating cables and electric furnaces. The AX-PPR3-150 use solid-state switching with “zero crossing technology” to reduce RFI problems and provide accurate switching control . LED Indication of Output ON and are designed for panel mounting. The AXPPR3-150 feature three cooling fans which turns on automatically when the built in thermostat exceeds 60degC. No additional heatsinks or fans are needed. |
Product Features
| • 0-10Vdc Control Input
• 150kW Model
• Built in Thermostat to switch on integral fans
| • Three Integral Fans
• Alarm Output
• LED Indication
|
Input
| 0-10Vdc
| Fan Supply
| 230Vac 50/60Hz
| Max Heater Duty
| 150kW
| Rated Load
| 228Amps
| Dissipated Heat
| 735 Watts
| Rated Supply
| 415Vac / 50/60Hz
| Fuses
| 3 x 250FM fuses built in
| LED Indication
| ON when output is on.
| Control Terminals
| M8 Stud connections
| Power Terminals
| 150kW M8 stud connections
| Ambient Temp. Range
| 0 to 45 degC
| Dimensions
| 403 x 240 x 168mm
| Country of Origin
| United Kingdom
|
| AX-PPR3-150.pdf / 150kW Three Phase Power Controller |  |
|
|
|
