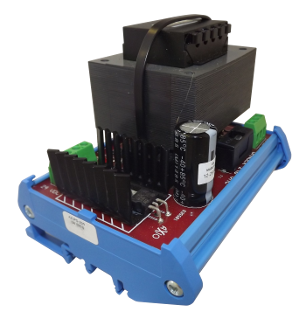

<< | < | AX-PS-230-24 - 230Vac to 24Vdc Power Supply
|
| |
|
A low cost power supply providing a regulated 24Vdc output from a 230Vac input. The AX-PS-230-24 Power Supply was designed to provide 24Vdc to power the Annicom range of DIN Rail Modules, but has many other uses where a low cost 24Vdc supply is required. The AXPS- 230-24 features output short circuit protection, LED power ON indication and rising clamp screw terminals. The AX-PS-230-24 is designed for mounting on TS35 section DIN Rail. |
Product Features
| • Regulated 24Vdc Output at 1A
• Output Short Circuit Protection
• LED Power Indication
| • High Quality Rising Clamp Terminals
• DIN Rail Mounting (TS35)
• Optional Ventilated Metal Enclosure
|
Input Suply
| 230Vac (+/- 15%)
| Input Supply Fuse
| 630mA @ 250Vac
| Output Supply
| 24Vdc (+/-10%)
| Output Fuse
| 1A
| Terminals
| Rising Clamp for 0.5-2.5mm2 Cable
| LED Indication
| ON when Power on
| Ambient Temp. Range
| 0 to 50’C
| Dimensions
| 112mm(w) x 92.5mm(h) x 90mm (approx.)
| Country of Origin
| United Kingdom
|
| AX-PS-230-24.pdf / 230Vac to 24Vdc Power Supply |  |
|
|
|
