<< | < | AX-PS-24-24 - 24Vac to 24Vdc Power Supply
|
| |
|

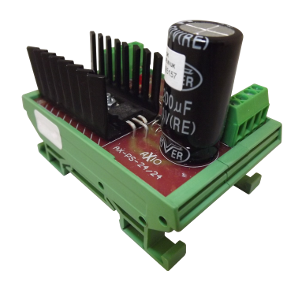

The Axio AX-PS-24-24 provides a regulated 24Vdc supply from a 24Vac input. There are two versions of this Power Supply available – one with full-wave rectification, and one with half-wave rectification. The module features output short-circuit protection and LED Power-on indication. The AX-PS-24-24 is supplied in a DIN rail carrier for mounting on TS35 section DIN rail and features high quality rising clamp terminals for ease of connection. |
Product Features
| • Regulated 24Vdc output at up to 1Amp
• Output short-circuit protection
• LED power-on indication
• Loop-in and loop-out facility on each terminal
| • Two output options available
• DIN rail carrier as standard (TS35 DIN rail)
• High quality rising clamp terminals
|
Input supply
| 24Vac ±15%
| Input current
| AX-PS-24-24-1C - Output current x 3.5
|
| AX-PS-24-24-1F - Output current x 1.6
| Output supply
| 24Vdc ±5% at 1A maximum
| Supply fuse
| 1A slow blow, 20mm
| LED indication
| On when power on
| Terminals
| Rising clamp for 0.5-2.5mm2 cable
| Ambient temperature range
| 0°C to 50°C
| Dimensions
| 56(W) x 82(H) x 43(D) mm
| Weight
| 75 gms
| Country of origin
| United Kingdom
|
| AX-PS-24-24.pdf / 24Vac to 24Vdc Power Supply |  |
|
|
|
