<< | < | AX-PS-DR-30 - 230Vac to 12/24Vdc Power Supply
|
| |
|

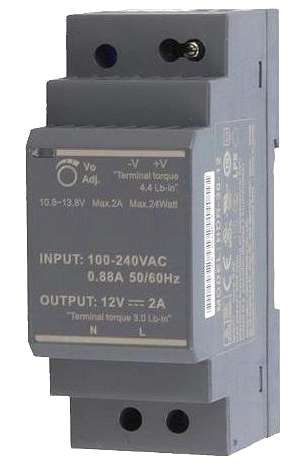

The AX-PS-DR-30 Power Supply is a cost effective, ultra slim unit providing a regulated 12 or 24Vdc output from an 85 to 264Vac input. The power supply is designed to provide 12/24Vac to power the Axio range of DIN Rail Modules, but has many other uses where a cost effective DC supply is required. The AX-PS-DR-30 features short circuit, over load & over voltage protection and is designed for mounting on TS35 section DIN rail. |
Product Features
| • Regulated 12/24Vdc Output at 2/1.5A
• Short Circuit, Over Load, Over Voltage , Over Temperature Protection
• LED Power Indication
| • 85 to 264Vac or 120 to 370Vdc input
• High Quality Rising Clamp Terminals
• DIN Rail Mounting (TS35)
|
Input Voltage
| 85 to 264Vac or 120 to 370Vdc
| Input Frequency Range
| 47 to 63Hz
| Input Current
| 0.88A @115Vac or 0.48A @230Vac
| Input Inrush Current (max)
| 25A @115Vac or 45A @230Vac
| Output Voltage
| 12 or 24Vdc
| Output Voltage Adjustment Range
| 10.8 to 13.8Vdc
| Output Current
| 12Vdc = 0 to 2A 24Vdc= 0 to 1.5A
| Output Power
| 12Vdc = 24W
| Terminals
| Rising Clamp for 0.5-2.5mm2 Cable
| LED Indication
| ON when Power on
| Ambient Temp. Range
| -10 to +50°C @ 20 to 90% RH
| Safety Standards
| UL508, TUV EN60950-1 Approved
| EMC Conduction and Radiation
| Compliance to EN55032, EN61000-3-2,-3
| Dimensions
| 35mm(W) x 90mm(H) x 54.5mm(D)
| Weight
| 0.12Kgs
| Country of Origin
| Taiwan
|
| AX-PS-DR-30.pdf / 230Vac to 12/24Vdc Power Supply |  |
|
|
|
