<< | < | AX-PSU-2424-LP - 24Vac to 24Vdc Power Supply
|
| |
|

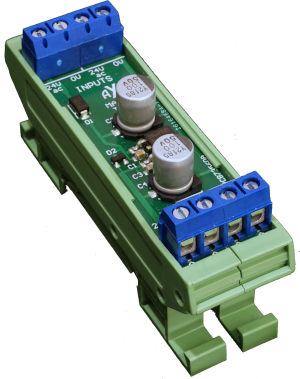

The AXIO AX-PSU-2424-LP provides a regulated 24Vdc supply from a 24Vac input. The module features two 24Vac inputs, one for supply and a through connec-tion to power other equipment.The Power Supply is designed to provide DC for 2 4-20mA loop-powered devices but can power low current 24Vdc peripherals. The module also features output short-circuit protection. Supplied in a DIN rail carrier for easy mounting on TS35 section DIN rail. |
Product Features
| • Regulated 24Vdc output up to 60mA
• No additional heatsinks required
• Small form-factor, only 23mm wide
| • Output short-circuit protection
• DIN rail carrier as standard (TS35 DIN rail)
• 24Vac through terminals for additional modules
|
Inputs
| 2 x 24Vac ±15%
| Outputs
| 2 x 24Vdc ±5% at 60mA maximum
| Terminals
| 0.5-1.5mm2 cable
| Ambient Temperature Range
| 0°C to 55°C
| Dimensions
| 23(W) x 82(H) x 37(D)mm
| Weight
| 28grams
| Country of origin
| United Kingdom
|
| AX-PSU-2424-LP.pdf / 24Vac to 24Vdc 60mA Power Supply |  |
|
|
|
