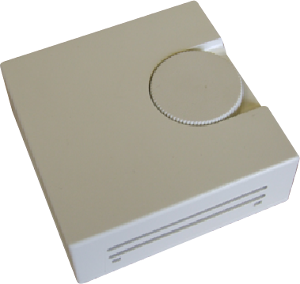

The AX-RC-P1 proportional temperature controllers provide 0-10Vdc output proportional to the difference between the setpoint and the measured temperature. The output signal can be used to control VAV Boxes, modulating damper motors, modulating valve actuators , relay modules or thyristor power controllers among others . The unit is powered from 24Vac/dc |
Product Features
| � Setpoint Adjustment
� Room sensor housing
� Heating or Cooling - jumper selectable
| � 24Vac/dc
� Adjustable proportional band
|
Power Supply
| 24Vac/dc +/- 15%
| Power Consumption
| <1VA
| Output Signal
| 0-10Vdc @3mA
| Setpoint Range
| 10 to 30 deg C
| Proportional Band
| 2 to 12 deg C adjustable
| Mode of Operation
| Heating or Cooling - jumper selectable
| Temperature Element
| 10K3A1
| Dimensions
| 83 x 83 x 27mm (excluding setpoint knob)
| Terminals
| Terminals for 0.5 to 2.5mm2 cable
| Protection
| IP20
| Country of Origin
| United Kingdom
|
| AX-RC-Px.pdf / Room Proportional Controller |  |
|
