<< | < | AX-REF-VI - Commissioning Tool
|
| |
|

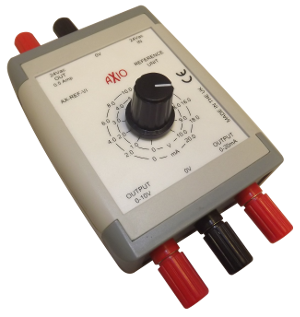

Perfect for commissioning the bench testing, AX-REF-VI provides 0-10Vdc and 0-20mA outputs in a switch selectable range. A 24Vac fused output is also provided from the unit for powering modules and some actuator. The package includes a 230Vac PSU that fits a standard UK plug. The AX-REF-VI is a useful, versatile tool ideal for commissioning engineers, testers and system designers. |
Product Features
| • 0-10Vdc output in 1V steps
• 0-20mA output in 2mA steps
| • 24Vac fused output provided
• 230Vac plig top supply included
|
Supply Voltage
| 230Vac 50Hz (+/-15%)
| Output 0-10Vdc
| 0 to 10.0V in 1.0V steps at 10mA maximum
| Accuracy at 10.0V
| +/-1%
| Accuracy 1.0V-9.0V
| +/-2%
| Output 0-20mA
| 0.0 to 20mA in 2.0mA steps into 1kO maximum load
| Accuracy at 20mA
| +/-1%
| Accuracy 2.0-18.0mA
| +/-2%
| Output 24Vac
| 24Vac fused internally at 500mA
| Terminals
| 4mm binding posts
| Ambient temperature range
| 0-50C
| Dimensions
| 130(W) x 75(H) x 32(D) mm maximum (excluding power supply unit)
| Housing
| Moulded ABS
| Weight
| Reference Unit 140gms (+ Power supply unit 500gms)
| Country of origin
| United Kingdom
|
| AX-REF-VI.pdf / Analogue output reference unit - hand held |  |
|
|
|
