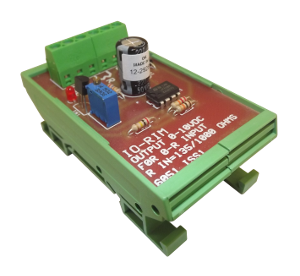

The AX-RIM135 and AX-RIM1000 Modules enable an existing resistance signal to be monitored by a BMS Controller. These modules convert either a 0-135Ω or a 1kΩ signal into a 0-10Vdc output. Both units are powered from 24V ac or 24V dc, feature LED indication and are designed for mounting on TS35 section DIN Rail. |
Product Features
| � 135Ω and 1kΩ Versions
� 0-10Vdc Output
� 24Vac or dc Powered
| � DIN Rail Mounting (TS35)
� High Quality Rising Clamp Terminals
� LED Indication
|
Input Signal
| 135Ω and 1kΩ
| Output
| 0-10Vdc
| Power Supply
| 24V ac or dc
| Terminals
| Rising Clamp for 0.5-2.5mm² Cable
| LED Indication
| ON when powered on
| Ambient Temp. Range
| 0 to 50°C
| Dimensions
| 47mm(w) x 92.5mm(h) x 47mm (approx.)
| Country of Origin
| United Kingdom
|
| AX-RIM.pdf / Resistance Input Modules |  |
|
