<< | < | AX-RM1AB - Adjustable single relay module with buffered output
|
| |
|

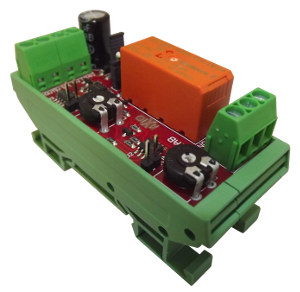

The Axio AX-RM1AB module provides a SPCO relay output from a 0 to 10 volt input signal. The relay switch on and switch off points are adjustable using the on-board presets. The AX-RM1AB also provides a buffered slave 0 to 10 volt output signal to drive other modules etc. An AUTO/ON (HAND)/OFF jumper link is provided for commissioning or manual override purposes. The unit can be powered from 24Vdc or 24Vac. The AX-RM1AB is supplied in a DIN rail carrier suitable for mounting on TS35 section DIN rail and features high quality rising clamp terminals for ease of connection. |
Product Features
| • 0-10V dc input at low current
• SPCO volt free relay output
• Buffered slave 0-10V dc output
• 24Vac/dc powered
| • LED indication of relay status
• AUTO/ON (HAND)/OFF jumper link for commissioning
• High quality rising clamp terminals
• DIN rail carrier (TS35 DIN rail)
|
Supply voltage
| 24Vac or dc (+/-15%)
| Supply current
| 100 mA on 24Vac / 30mA on 24Vdc maximum
| Input
| 0-10 volts dc at 0.3 mA maximum
| Output
| 0-10 volts dc at 5 mA maximum
| Switch On point
| Adjustable 0.1 to 10Vdc
| Switch Off point
| Adjustable 0.1 to Switch On point
| Output switching
| Single Pole Changeover - 230Vac at 12 amps (NO contact- Resistive load)
| Terminals
| Rising clamp for 0.5-2.5mm2 cable
| LED indicator
| ON when relay energised
| Ambient temperature range
| 0°C to 50°C
| Dimensions
| 34(W) x 83(H) x 47(D) mm (Maximum)
| Weight
| 45 grams
| Country of origin
| United Kingdom
|
| AX-RM1AB.pdf / Adjustable single relay module with buffered output |  |
|
|
|
