<< | < | AX-RM2L - Multi-mode Two Relay Module with Display
|
| |
|

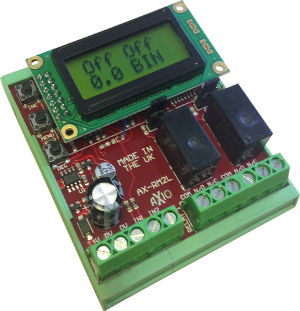

The AX-RM2L is a two stage relays module with an LCD to allow easy set up. The unit can be used to replace a standard AX-RM2T or two AX-RM1AB models and incorporates a window mode where the relays will only switch on if the inputs are within low and high limits. The 0-10V on IN1 is buffers and retransmitted on OUT1 allowing the unit to be cased. The unit has a two line LCD to show current state and provides ease setup via the menu. The unit mounts on standard TS35 DIN rail. |
Product Features
| • Dual RM1A mode
• Window and invert mode
• Adjustable swithc points
• Adjustable stage delay
• Adjustable settling time
| • LCD display for ease setup
• Buffered re-transmission of IM1 0-10Vdc
• 24Vac supply
• DIN rail mounting
|
Power supply
| 24Vac/dc (+/-10%)
| Inputs IN1, IN2
| 2 x 0 to 10Vdc, 1mA max
| Output relay
| 2 x SPNO contactsrated at 10A(Res) 250Vac
| Output OUT1
| 1 x 0 to 10Vdc, 5mA max
| Display
| 2 line x 8 character LCD
| Stage delay
| 0 to 1200 seconds
| Settling time
| 0 to 60 seconds
| Terminals
| Rising clamp for 0.5-2.5mm² cable
| Dimensions
| 68(W) x 83(H) x 44(D) mm
| Weight
| 100gms
| Country of Origin
| United Kingdom
|
| AX-RM2L.pdf / Adjustable 2 stage relay module with LCD, 24Vac |  |
|
|
|
