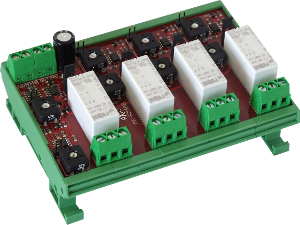

The Axio AX-RM4AB module provides four SPCO relay outputs from a single 0 to 10 volt input signal. The switch on and switch off points of each relay is adjustable using the on-board presets. The AX-RM4AB also provides buffered slave 0 to 10 volt output signal to drive other modules ect. An AUOT/ON(HAND)/OFF jumper link is also provided for commissioning or manual override purposes. The unit can be powered from 24Vdc or 24Vsc. The AX-RM4AB is supplied in a DIN rail carrier suitable for mounting in TS35 section DIN rail and features high quality rising clamp terminals for ease of connection.
Product Features
� 0-10Vdc input at low current � 4 off SPCO volt free relay outputs � Buffered salve 0-10Vdc output � 24Vac/dc powered
� LED indication of relay status � AUTO/ON)HAND)/OFF jumper link for commissioning � High quality rising clamp terminals � DIN rail carrier (TS35 DIN rail)
Supply voltage
24Vac or dc (+/- 15%)
Supply current
180mA on 24Vac / 100mA on 24Vdc maximum
Input
0-10Vdc at 0.3mA maximum
Output
0-10Vdc at 5mA maximum
Switch On point
Adjustable 0.1 to 10Vdc
Swith Off point
Adjustable 0.1 to Switch On point
Output switching
4 off single pole changeover - 230Vac at 12Amps (NO contact- resistive load) max
Terminals
Rising clamp for 0.5-1.5mm� cable
LED indicators
ON when relay energised
Ambient temperature
0-50�C
Dimentsions
115 x 83 x 47mm maximum
Weight
160g
Country of Origin
United Kingdom
AX-RM4AB.pdf / Adjustable four relay module with buffered ouput
