<< | < | AX-ROM - Resistance output Modules
|
| |
|

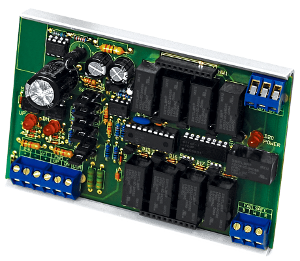

The AX-ROM135 and AX-ROM1000 Modules enable an Analogue, Pulse or Floating Point signal and convert to either a 0-135W or a 1KW Proportional Resistive output signal . The output resistance signal does not wrap around if the input signal exceed the highest or lowest selected input value . Both units are powered from 24V ac or 24V dc, feature LED indication and are designed for mounting on TS35 section DIN Rail. Three versions of the unit are available and must be selected at time of order. |
Product Features
| • 135Ω and 1kΩ Versions
• Analogue, Pulse or Floating Point inputs
• 24Vac or dc Powered
| • DIN Rail Mounting (TS35)
• High Quality Rising Clamp Terminals
• LED Indication
|
Input Signal
| 8 Analogue (current/voltage) signal ranges
|
| 6 Selectable Pulse input ranges
|
| 6 Selectable Floating Point ramp rates
| Output
| 135Ω and 1kΩ (Electrically isolated)
| Power Supply
| 24V ac or dc
| Terminals
| Rising Clamp for 0.5-2.5mm² Cable
| LED Indication
| ON when powered on
| Ambient Temp. Range
| 0 to 50°C
| Dimensions
| 120mm x 80mm x 25mm (approx.)
| Country of Origin
| U.S.A.
|
| AX-ROM.pdf / Resistance Output Modules |  |
|
|
|
