<< | < | AX-SM500-MG73 - Supply Monitoring Relays -3Phase- 240Vac
|
| |
|

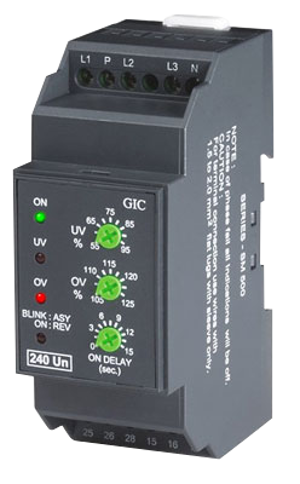

The AX-SM500-MG73. These Supply monitoring relays have LED indication of all standard parameters. The units are designed for 3phase 4 wire 240Vac or for single phase 240Vac and have two change over contacts (DPDT). The unit are designed for DIN rail mounting |
Product Features
| • 36 mm width
• Three phase or single phase 240Vac
| • LED indication of all faults
|
Supply Voltage
| 3 phase 4 wire 240Vac 48/63Hz
|
| 1 phase 240Vac
| Power Consumption
| 5VA
| Trip Settings
|
| Under Voltage
| 55% to 95% of Un
| Over Voltage
| 105% to 125% of Un
| Phase-Phase Unbalanced (Asy)
| 10%
| Phase reverse detect
| Yes
| Hysteresis
| 7V +/- 2V of trip voltage (factory set)
| NB
| voltage setting is with respect to neutral
| Setting Accuracy
| +/- 10% of full scale
| Relay Output
| 2 x C/O DPDT
| Switching Contacts 5A @250Vac/28Vdc resistive
|
| Protection
| IP40 enclosure IP20 terminals
| Mounting
| DIN
| Dimensions
| 36 x 90 x 60 mm
| Weight
| 120 gms
| Terminals
| Terminals for 0.5 to 2.5mm2 cable
| Ambient Range
| -15 to +60°C 10 to 95% RH non condensing
| Approvals
| CE, IEC60255
|
| EMI/EMC
|
| IEC 61000-4-4 level 1V,
|
| IEC 61000-4-5 level 1V,
|
| IEC 61000-4-11,
|
| AX-SM500-MG73.pdf / Supply Monitoring Relays -3Phase- 240Vac |  |
|
|
|
