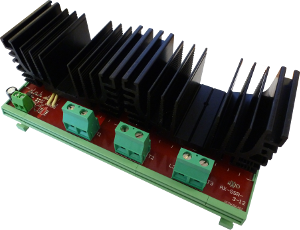

<< | < | AX-SSR3-xx-xx - 6 and 12kW Solid state relays, 3 Phase
|
| |
|
The AX-SSR3 Series of DIN Rail mounting Three Phase Solid State Relays are designed for ease of use as they require no additional Heatsinks. Applications include electric heating coils, duct heaters, lighting circuits and electric furnaces. The AX-SSR3 Series use solid-state switching with “zero crossing technology” for minimum RFI and provides accurate switching control, and are designed to mount on TS35 section DIN Rail. Various voltage control input options are available, both ac and dc. Over temperature protection with automatic reset is builtin. |
Product Features
| • 4-38Vdc, 24Vac and 230Vac input options
• 6kW and 12kW Models
• Three Phase
| • Zero Volt Switching
• Integral Heatsink
• DIN Rail (TS35) Mounting
|
Control Input
| -24 24Vac (requires 10mA)
|
| -DC 4-38Vdc
|
| -230 230Vac
| Rated Load
| SSR3-6 8.7A (resistive) per phase
|
| SSR3-12 16.5A (resistive) per phase
| Dissipated Heat
| SSR3-6 21W
|
| SSR3-12 43W
| LED Indication
| ON when output is on.
| Load Supply
| 380 to 440Vac Three phase 50/60Hz
| Input Terminals
| Rising Clamp for 0.5-2.5mm2 Cable
| Load Terminals
| 6kW Rising Clamp for 4mm solid or 2.5mm stranded
|
| 12kW Rising Clamp for 6mm solid or 4mm stranded
| Ambient Temp Range
| 0 to 55°C. Note; The units are rated at 40°C. If using at higher ambient temperature de-rate the units by 10% for every 5°C above 40°C upto 50°C.
| Dimensions
| SSR3-6 102(w) x 85(h) x 45(d) mm 165gms (-230 see datasheet)
|
| SSR3-12 140(w) x 95(h) x 60(d) mm xxx gms (-230 see datasheet)
| Country of Origin
| United Kingdom
|
| AX-SSR3x.pdf / Three Phase Solid State Relays |  |
|
|
|
