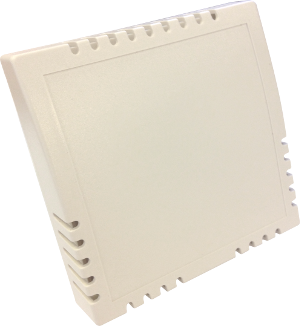

The AX-TE-R range of space temperature sensors can interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistor element or with an active linear output. The housing is designed for both direct surface mounting and with fixing holes for standard recessed patress and conduit boxes. The housing is designed to maximise air flow through it thus providing fast response times and returning values indicitive of the space in which it is installed.
Product Features
� Large Range of Sensor Options � Accurate Sensing of Room Temperature
� Direct Fixing � Manufactured from Flame Retardant ABS
Output
Passive
Range of two wire thermistor and PTC platinum elements providing variable resistance.
Accuracy
Thermistor
+/- 0.2�C between 0�C and 70�C
Platinum
+/- 0.35�C between 0�C and 100�C (PT100a and PT1000a)
Active
+/- 0.1% of range
Material
VO Rated Flame Retardant ABS
Terminals
Rising Clamp for 0.5-1.5mm� Cable
Ambient Temp
-10�C to 60�C
Dimensions
85 x 85 x 26mm (max.) (transmitter 70 x 119 x 32mm)
The AX-TE-R range of space temperature sensors can interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistor element or with an active linear output. The housing is designed for both direct surface mounting and with fixing holes for standard recessed patress and conduit boxes. The housing is designed to maximise air flow through it thus providing fast response times and returning values indicitive of the space in which it is installed.
